IGS: 40% Yield Increase with Light Recipe Optimisation

Summary

• Breakthrough in Remote Plant Feedback: Gardin enabled Intelligent Growth Solutions (IGS) to remotely monitor real-time photosynthetic efficiency inside vertical farms — critical in environments where human access is disruptive and traditional monitoring is infeasible. This plant-centric insight closed the gap between climate inputs and biological response, transforming recipe optimisation from guesswork into a data-driven process.
• 40% Yield Gains: Across basil, lettuce, and pak choi, Gardin-guided optimisation improved crop yields by 30 - 40% and significantly increased energy productivity (biomass per unit of electricity).
• Novel Optimisation: Gardin's Bayesian learning approach reduced recipe development time from months to weeks, balancing maximum yield with commercial constraints such as height and quality. This unlocked a scalable, repeatable model for precision cultivation with strong return on investment.

"For the first time, Gardin's advanced sensors have enabled us to remotely explore plant activity in an industrial setting. This breakthrough has been a significant milestone in our quest to perfect recipe development and crucial for creating the optimal plant environment."

Csaba Hornyik - Head of Science, IGS

Background

Intelligent Growth Solutions (IGS) is a Scottish agri-tech company pioneering the future of vertical farming through its intelligent, modular growth towers. Their fully automated systems allow for precise control over light, climate, irrigation, and nutrition — enabling year-round production of fresh, high-quality crops.

Despite total environmental control, one critical piece remains hidden: how the plant is truly responding to its conditions. In vertical farms, where crops are physically inaccessible and human entry disrupts the microclimate and introduces biosecurity risks, traditional methods of observation are infeasible. Understanding the plant's physiological response — particularly how climate variables influence photosynthesis — requires real-time, remote sensing and direct plant feedback. Without it, recipe optimisation is slow and doesn't represent production growing environments.

In 2022, IGS partnered with Gardin to bridge that gap and enable plants to communicate directly with operators. In doing so, the project aimed to significantly improve yield and energy efficiency by using photosynthetic feedback to optimise LED 4-channel lighting strategies.

The Challenge

Traditional methods of measuring crop performance rely on delayed indicators such as fresh weight at harvest, making recipe optimisation a slow, reactive process. IGS recognised that even with well-engineered lighting schedules, environmental uniformity is hard to guarantee across large-scale towers. Microclimates, subtle variations in germination density, and plant-to-plant variability can all lead to inconsistent performance.

Additionally, light-use efficiency (i.e., how much biomass a plant produces per unit of energy used) is critical in vertical farming where energy costs are substantial. IGS sought a method to close the loop between the amount and quality of light that the plants are given and what is used productively for plant growth.

The Role of Gardin

Gardin's chlorophyll fluorescence sensor captures real-time measurements of photosynthetic efficiency — a physiological metric that directly reflects how well plants are converting light into energy. The sensor passively scans the canopy and provides non-destructive, quantitative data on photosynthetic activity under actual growing conditions.

The initial phase of the project involved growing over 50 plant batches under varying lighting intensities, while keeping other climate variables constant. Fertigation strategies and seeding densities were also varied to test the sensor’s robustness in real-world conditions.

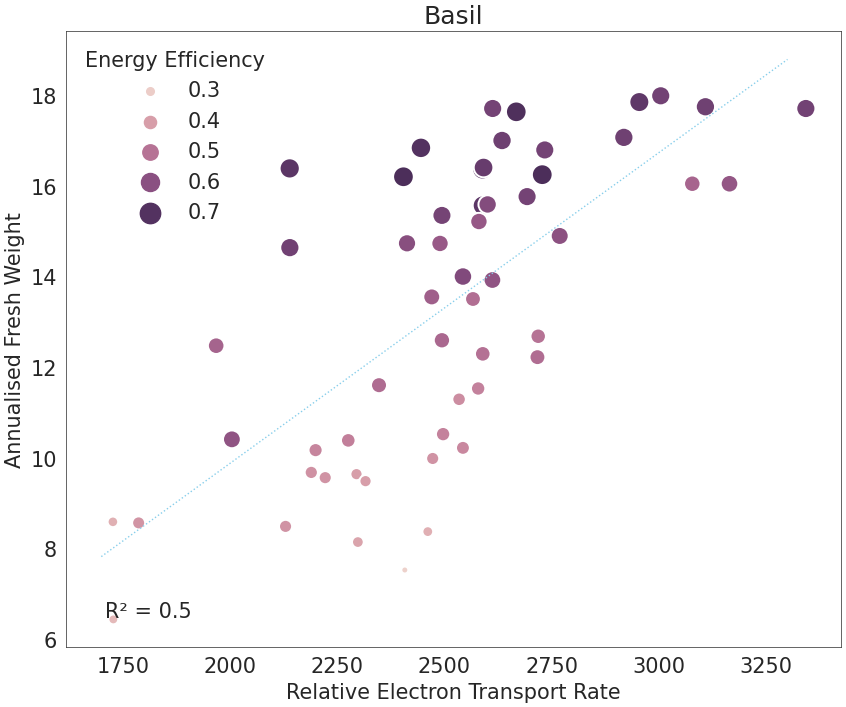

The results were compelling: photosynthetic efficiency measured by Gardin consistently tracked with crop fresh weight (kg/m²/year) and light-use productivity (kg/m²/kWh). Across these batches, Gardin's single metric could explain over 50% of the variance in productivity — a remarkable level of predictive power from a real-time, in-situ measurement.

From Observation to Optimisation

At the same time, Gardin used data from its sensors and a bayesian machine learning framework for active optimisation of light recipes. Three crops — basil, lettuce, and pak choi — were grown in parallel. For each species, baseline light recipes were already delivering good yields, but IGS and Gardin hypothesised that stage-specific, spectrum-optimised lighting could deliver more.

Each growth cycle was divided into three stages, with separate lighting recipes for each. Four key light channels — red, green, blue, and far-red (RGB-FR) — were adjusted alongside photoperiod and cycle duration, creating a 14-variable optimisation challenge. Traditional trial-and-error would have taken years, especially given the interactions between spectra (e.g., the Emerson Effect), but Gardin's real-time physiological feedback combined with advanced analytics enabled a much faster, more informed iteration cycle.

Over five experimental rounds per species — each testing five different light combinations — the optimal recipe for each crop was identified. Despite the complexity of the variable space, this approach required fewer than 25 recipes per species to converge on a solution.

Results

The performance gains were both immediate and substantial:

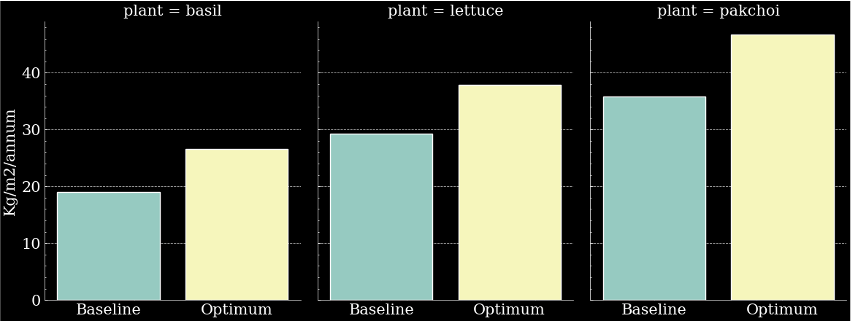

• Yield Increase: All three crops experienced yield improvements of at least 30%, annualised, compared to their original lighting schedules.
• Energy Productivity: Light-use efficiency (kg/m²/kWh) improved significantly, demonstrating more biomass produced per unit of electricity.
• Faster Iteration: With physiological data in real-time, each experimental cycle could be evaluated within minutes, not weeks — a game-changer for recipe development.

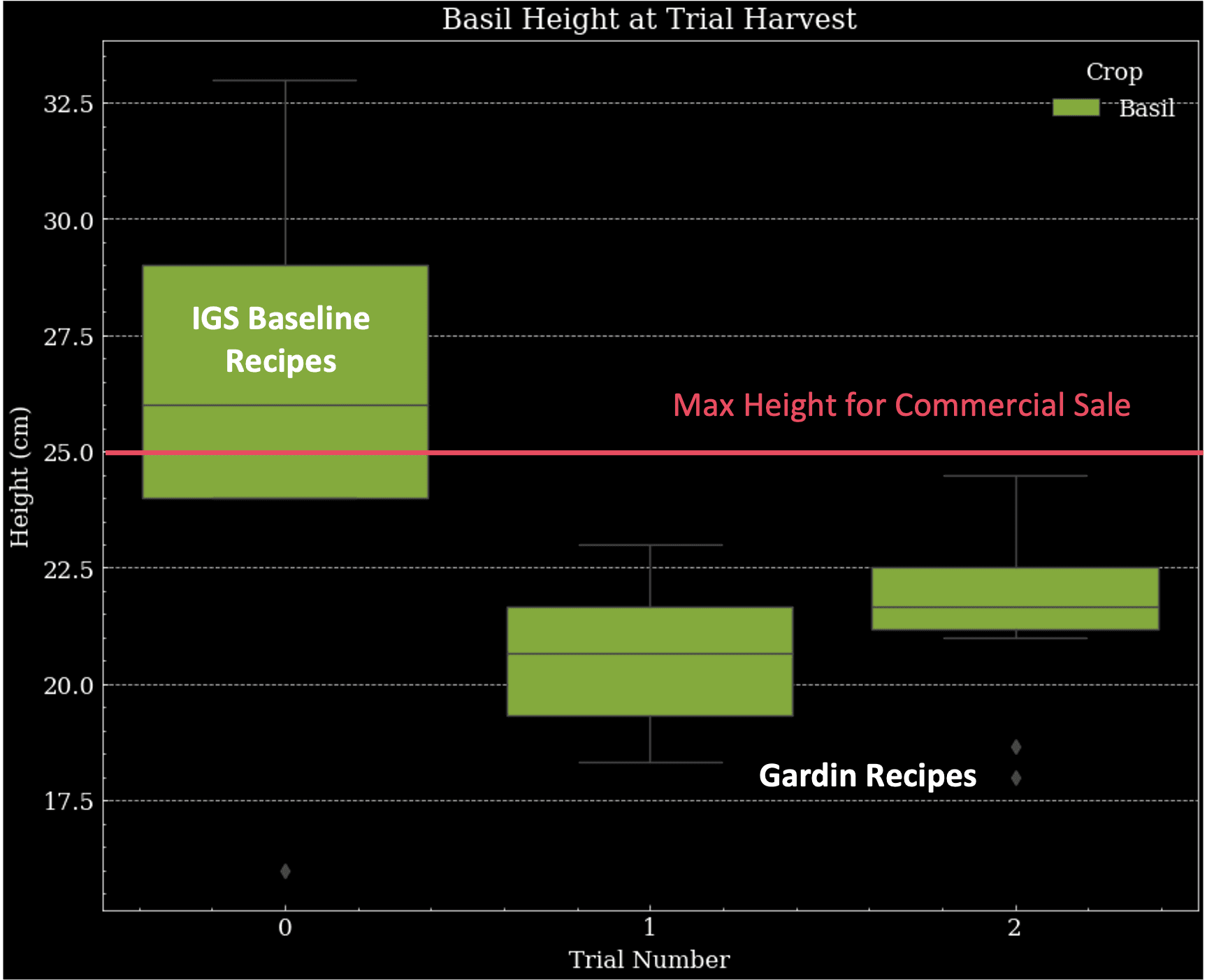

• Commercial Alignment: The optimised recipes respected height, quality, and colour constraints required by retailers, proving practical as well as productive.

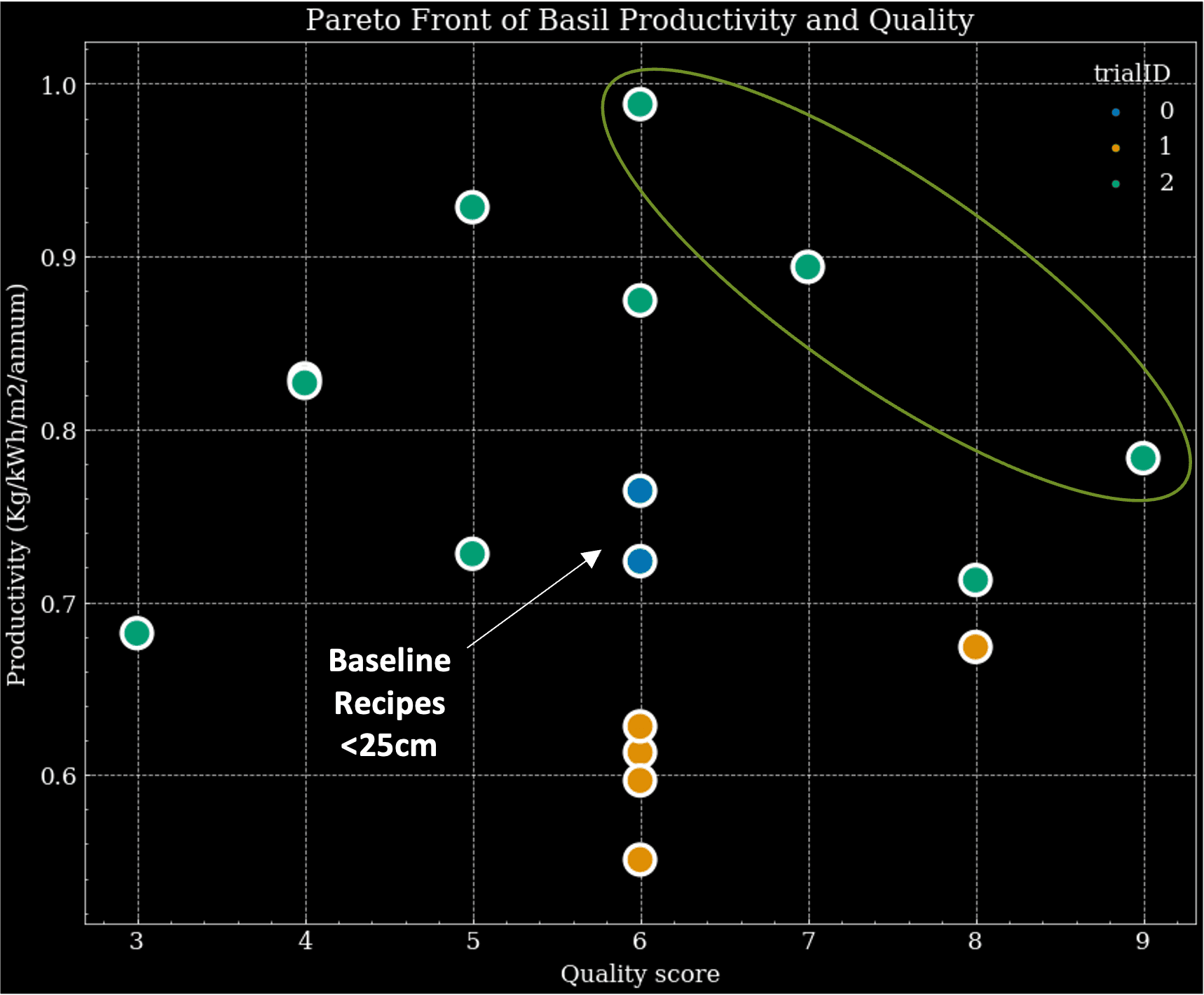

In addition, Gardin's optimisation method enabled the discovery of the Pareto front between plant productivity and product quality — a crucial balance in commercial horticulture. By using real-time photosynthetic feedback, the system could identify lighting and climate combinations that maximised biomass production without compromising key quality traits such as colour, leaf texture, or compactness. Importantly, these optimised recipes also respected strict constraints on plant height, ensuring the crops met supermarket specifications for shelf-ready sale. This approach allowed IGS to push yield boundaries while maintaining marketable quality, unlocking a practical and profitable optimisation path for high-value crops.

Conclusion: A Clear Return on Investment

Gardin's sensor has proven to be a transformational tool for plant-centric lighting optimisation. By giving the plant a voice in the growing process, IGS was able to uncover hidden inefficiencies, fine-tune their recipes, and dramatically increase both yield and energy efficiency — all within a scalable and repeatable framework.

What would have taken months of experimentation was achieved in just a few growth cycles. And because Gardin's approach is crop-agnostic and non-invasive, it can be applied to any crop species and be applied to optimise any controlled environment.
